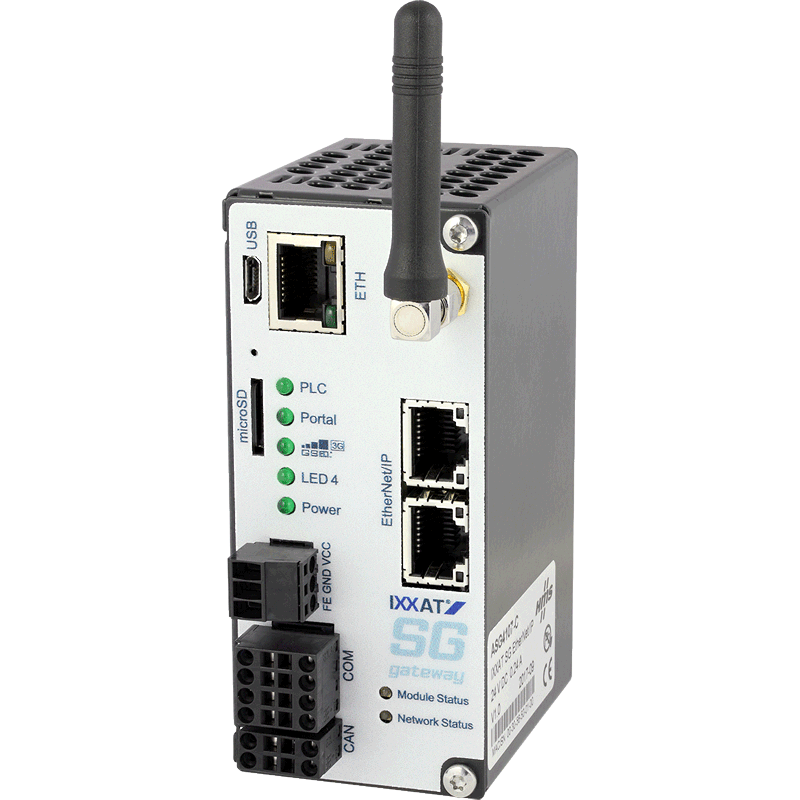

Ixxat Smart Grid gateway Ethernet/IP

Energy Smart Grid Gateway with Ethernet/IP, Modbus, IEC61850 & IEC60870-5-104

The SG-gateway is a Smart Grid gateway with EtherNet/IP implemented as a real-time EtherNet/IP adapter interface with an integrated 2-port switch, allowing seamless network integration regardless of network topology (line, star, bus).

The Ixxat SG-gateway supports the communication protocols used in the energy sector, e.g. IEC60870-5-104 and IEC61850 and enables connectivity for energy devices to EtherNet/IP-based automation systems.
The gateway can also support the connected electric equipment in the field, via an Ethernet interface and/or a serial port, using the protocols Modbus TCP and RTU. As an option, the SG-gateway can include 3G modem.

Smart grid applications

The Ixxat SG-gateway is designed to specifically target Demand Response (networking of industrial electric loads) and Virtual Power Plants (networking of energy resources like biogas plants or combined heat and power units) applications and all applications requiring to bridge between energy and industrial automation communication systems.

Features and Benefits

Connects intelligent electrical devices (IEDs) with IEC protocols to automation PLC systems using EtherNet/IP or Modbus TCP/RTU
Easy way to transport I/O data from electrical equipment in the field to SCADA systems
Connects intelligent electrical devices (IEDs) with IEC protocols to automation systems
Connects machines to PLC’s and Virtual Power Plant / Demand Response companies
Supports several communication protocols (IEC61850 client/server, IEC60870-5-104 client/server, Modbus TCP client/server, Modbus RTU master/slave)
Transmission over 3G (optional) or over Ethernet
Easy web based configuration using any standard browser
Robust metal housing for stand-alone operation with DIN rail mounting
Free technical support and consulting services via Twincomm and the HMS service portal

EtherNet-IP-interface

EtherNet/IP Adapter/Slave
EtherNet/IP CONFORMANCE TESTED™ by ODVA
Support for Generic Device profile
Dual port cut-through switch implemented in the Anybus NP40 processor
Device Level Ring (DLR) Beacon-based
Supports QuickConnect Class B
CIP energy object support
Customized identity information
Explicit messaging up to 1500 using Large Forward Open
Multiple I/O assembly support
Modular device support

Other interfaces

Modbus RTU interface

Selectable RS-232/422/485
Supports Modbus RTU Master/Slave
Connects up to 128 serial slave devices in master mode and supports up to 4096 values
Serial baud rate 300 bps - 921,6 kbps

IEC61850 (Optional)

Client/Server functionality
Goose Publisher/Subscriber functionality

IEC60870-5-104 (Optional)

Client/Server functionality
Up to 8192 data objects (each data object with value, quality and timestamp); 32 server devices supported in client configuration

Ethernet interface

10/100 Mbit/s
Supports Modbus TCP Client/Server
Connects up to 128 server devices in client mode and supports up to 4096 values
IT features: OpenVPN client, DHCP server, integrated
Firewall, SNTP, COM server, NAT routing

3G Modem (Optional)

SMS Send and Receive
Telecontrol access to the control room communicating IEC60870-5-104 or IEC61850 remote telecontrol protocols

Easy web-PLC-programming

The application logic can be programmed on the device either using the integrated graphical web editor or by using a predefined configuration loaded to the device. The graphical web editor is a very intuitive and easy to use interface to program software applications and configure the gateway. No engineering tools are required and it can easily be accomplished by service technicians.

Technical Data
Dimensions (L•B•H)	73x46x103 mm + 5.1mm height for versions with 3G modem
Weight	320 g
Operating temperature	0 t/m +55 °C
Housing	Continuously hot-dip aluminium-zinc coated steel sheet
Power Supply	24 VDC via Weidmüller 3.50/03
Current consumption (at 24 VDC)	max. 0.1 A (without IO's) max. 0.5 A per digital output Modem version: max. 0.14 A (without IO's) max. 0.5 A per digital output
LED indicators	5x
SD card slot	Supports micro SD cards up to 32 Gbyte
Ethernet connector	1x 10/100 BaseT RJ45
EtherNet-IP connector	2x RJ45
Serial connector	Weidmüller BL 3.50/08
CAN connector	Weidmüller BL 3.50/04
3G Modem	3G Tri Band UTMS modem (optional) comes with SIM card slot in the back
Protection class	IP20, NEMA rating 1
Mounting	DIN-rail (EN 50022 standard)
Supported protocols	IEC61850 Client/Server (optional), IEC60870-5-104 Client/Server (optional), Modbus TCP Client/Server and Modbus RTU Master/Slave
Profile support	VHP ready 4.0
Required software	CHIPtool voor IP configuration
Configuration methodes	Integrated webserver / WebPLC
Certifications	CE

Contents of delivery
- SG Gateway
- MicroSD memory card 4Gb
- Power supply, Serial and CAN connectors
- 3G Antenna (3G versions only)
- Configuration software for Windows™
- User Manual

Part number(s)

ASG4100-C

SG-gateway EtherNet/IP
no IEC-support

ASG4102-C

SG-gateway EtherNet/IP
IEC60870-5-104 Client/Server

ASG4104-C

SG-gateway EtherNet/IP
IEC61850 Client/Server

ASG4106-C

SG-gateway EtherNet/IP
IEC60870-5-104 Client/Server + IEC61850 Client/Server

ASG4108-C

SG-gateway EtherNet/IP
no IEC-support + DNP3 Outstation

ASG4110-C

SG-gateway EtherNet/IP
IEC60870-5-104 Client/Servert + DNP3 Outstation

ASG4112-C

SG-gateway EtherNet/IP
IEC61850 Client/Servert + DNP3 Outstation

ASG4114-C

SG-gateway EtherNet/IP
IEC60870-5-104 Client/Server + IEC61850 Client/Servert +
DNP3 Outstation

ASG4115-C

SG-gateway EtherNet/IP
IEC60870-5-104 Client/Server + IEC61850 Client/Servert +
DNP3 Outstation + 3G
