INpact PROFIBUS Slave PCIe interface
Versatile industrial Ethernet PC interface for PROFIBUS
The Ixxat INpact is an Industrial Ethernet PCIe slave interface. The dedicated PROFIBUS version of the Ixxat INpact comes with a pre-installed network protocol. It enables the easy connection of PC-based Profibus Slave applications to the industrial network and is based on proven Anybus and Ixxat technology.
This technology makes the INpact very versatile. For example, by using another variant, an easy change to another Industrial Ethernet protocol can be made without requiring any software to be rewritten. Thus, the host system has a network slave interface with any desired Industrial Ethernet protocol.
This technology makes the INpact very versatile. For example, by using another variant, an easy change to another Industrial Ethernet protocol can be made without requiring any software to be rewritten. Thus, the host system has a network slave interface with any desired Industrial Ethernet protocol.
PROFIBUS Features
- Profibus DP-V1 and DP-V0
- Profibus connector (9-pin female Sub-D9)
- Automatic baud-rate detection
- Generic and Profibus specific diagnostic support
- User Parameterization Data
- Set Slave Address
- ADI access via DP-V1 read/write services
- Up to 488 bytes of IO data (244 bytes in each direction)
- Device identity customization
- Generic GSD file provided
- Modular Device Mode
Easy Programming
The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.
| Technische gegevens | ||
| INpact CE Slave PCIe Mini | ||
| Field bus interface | Two Ethernet ports, 100/10 Mbit | |
| PC interfaces | Mini PCI Express (x1) | |
| Network handling | Anybus NP40 | |
| Power supply | Via PCIe (3.3 V) | |
| Current consumption | Typ. 600 mA / 3.3 V DC | |
| Form factor | Full Mini Card form factor | |
| Operating temperature range | -40 °C to 60 °C | |
| Galvanic isolation | 1,500 Vrms | |
| Dimensions | 30 x 50.95 x 12 mm (with cable) | |
| Weight | ± 26 g (board, cable, bus interface) | |
| Contents of delivery |
| - Ixxat INpact PCIe Mini board with additional bus interface board and cable |
| - PROFIBUS firmware pre-installed |
| - Windows, Linux, QNX and INtime driver software |
| - User Manual |
Part number(s)
1.01.0341.27101

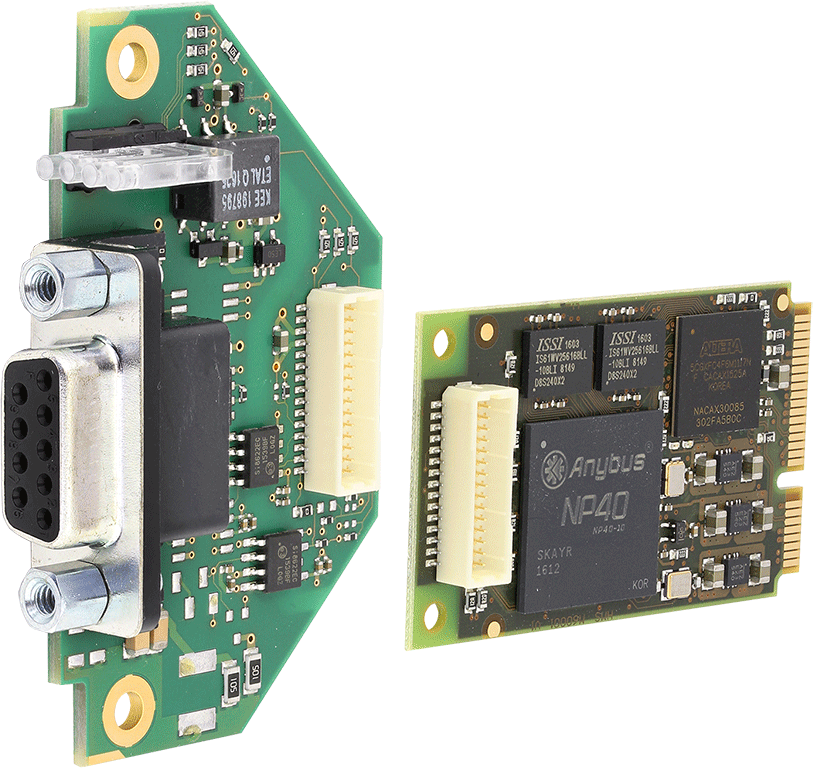

INpact PROFIBUS Slave Mini PCI Express
with connection cable and bus coupling unit 2x SC-RJ
with connection cable and bus coupling unit 2x SC-RJ
