INpact PROFINET FO Slave PCIe interface
Versatile industrial Ethernet PC interface for PROFINET FO
The Ixxat INpact is an Industrial Ethernet PCIe slave interface. The dedicated PROFINET-IRT Fiber Optic version of the Ixxat INpact comes with a pre-installed network protocol. It enables the easy connection of PC-based Profibus Slave applications to the industrial network and is based on proven Anybus and Ixxat technology.
This technology makes the INpact very versatile. For example, by using another variant, an easy change to another Industrial Ethernet protocol can be made without requiring any software to be rewritten. Thus, the host system has a network slave interface with any desired Industrial Ethernet protocol.
This technology makes the INpact very versatile. For example, by using another variant, an easy change to another Industrial Ethernet protocol can be made without requiring any software to be rewritten. Thus, the host system has a network slave interface with any desired Industrial Ethernet protocol.
PROFINET-IRT Fiber Optic Features
- Up to 128 sub-modules in total supported
- Up to 32767 ADIs
- 100 Mbit, full duplex
- Generic and Profinet specific diagnostic support
- Complies with Profinet IO Conformance class C
- Supports up to 1440 bytes I/O data in each direction, status bytes included
- SNMP agent
- FTP server
- E-mail client
- Server Side Include (SSI) functionality
- JSON functionality
- Device identity customization
- GSD file template provided
- Supports Media Redundancy Protocol (MRP)
Easy Programming
The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.
| Technische gegevens | ||
| INpact CE Slave PCIe Mini | ||
| Field bus interface | Two Ethernet ports, 100/10 Mbit | |
| PC interfaces | Mini PCI Express (x1) | |
| Network handling | Anybus NP40 | |
| Power supply | Via PCIe (3.3 V) | |
| Current consumption | Typ. 800 mA / 3.3 V DC | |
| Form factor | Full Mini Card form factor | |
| Operating temperature range | -25 °C to 60 °C | |
| Galvanic isolation | 1,500 Vrms | |
| Dimensions | 30 x 50.95 x 12 mm (with cable) | |
| Weight | ± 26 g (board, cable, bus interface) | |
| Contents of delivery |

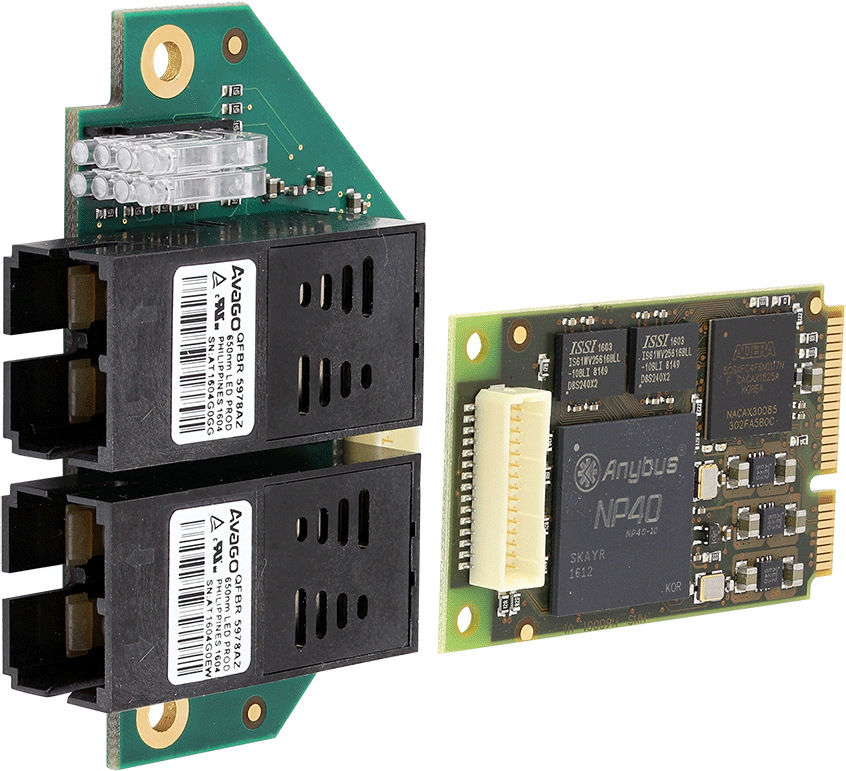

| - Ixxat INpact PCIe Mini board with additional bus interface board and cable |
| - PROFINET-IRT Fiber Optic firmware pre-installed |
| - Windows, Linux, QNX and INtime driver software |
| - User Manual |
Part number(s)
1.01.0341.26101
INpact PROFINET Fiber Optic Slave Mini PCI Express
with connection cable and bus coupling unit 2x SC-RJ
with connection cable and bus coupling unit 2x SC-RJ
