Communicator CAN - PROFINET gateway

Anybus CAN to PROFINET data converter

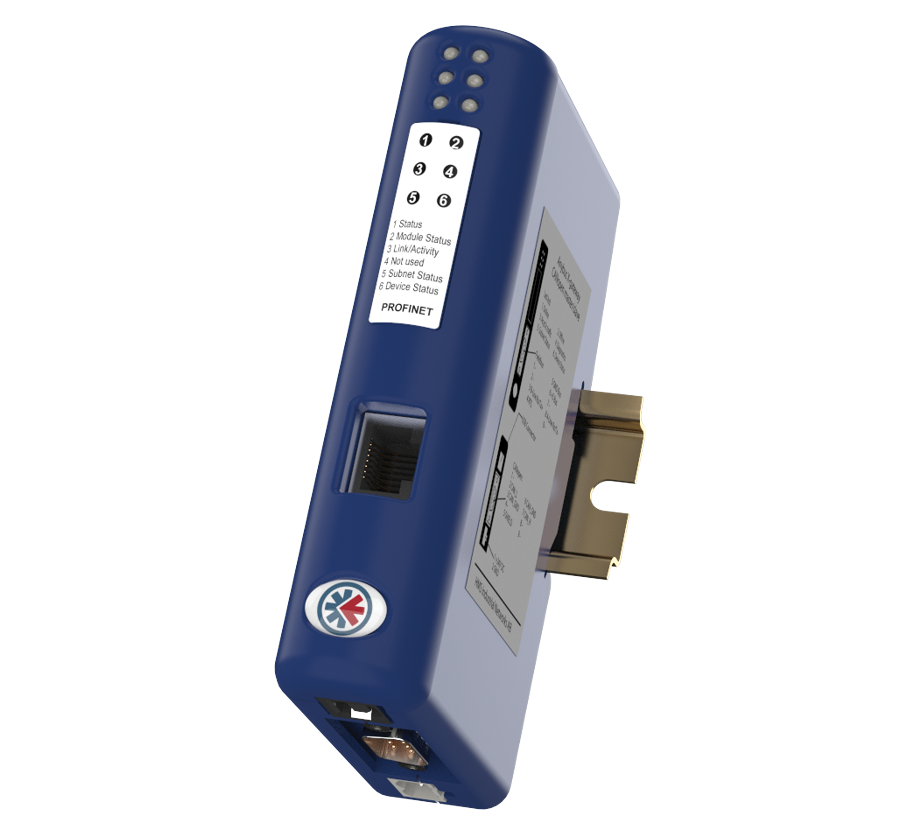

Anybus Communicator CAN is a gateway and data converter enabling the exchange of data between a subnetwork, running CAN, and a PROFINET network. This allows devices with a CAN port to be integrated into a PROFINET network, without the need for hardware or software changes.
The gateway works as a PROFINET slave for the primary network and as a standard CAN node for the second network

The Communicator performs an intelligent data conversion and presents CAN data to a PLC/Controller in the PROFINET network as easy to process I/O data. With convenient configuration software basically every manufacturer-specific CAN data protocol can be exchanged to PROFINET, or vice versa.

Anybus Communicator CAN - PROFINET

Features and benefits

• Saves machine builders and device manufacturers of integrating a PROFINET interface
• Requires no hardware or software changes to be made to CAN-devices
• Compatible with all PLC's and controllers with PROFINET support
• Performs complete CAN protocol conversion, no PLC function blocks required
• Flexible CAN frame building method for both Response/Request or Produce/Consume protocols
• Intelligent I/O data mapping within the Communicator permits even devices with slow CAN communication can be integrated without any restrictions to PROFINET
• Integrated Email client, FTP server and embedded webserver for diagnostics and data visualization

Conversion of I/O-data

The Anybus Communicator maps data byte from CAN messages into I/O data in the PROFINET network, and vice versa. This mapping is highly flexible and can contain an arbitrary set of CAN Id’s and data. CAN communication is supported both by both producer /consumer or request/response protocol schemes, who are configured with a flexible CAN frame building method.

All data between PROFINET and the CAN network is transferred through an internal memory buffer inside the Communicator. This method of data exchange also permits CAN devices with slow communication to be integrated into high-speed PROFINET networks without any restrictions. The Communicator appears as a standard I/O module on the PROFINET side.

Easy configuration - No programming required!

The mapping of data between CAN and PROFINET is quickly set up in the Anybus Configuration Manager software, included with the Communicator CAN. No programming skills are needed to set up the Communicator.

CAN-configuration features

• Graphical CAN frame building support using several ready-made CAN functions.
• Can configure any CAN 2.0A or 2.0B based protocol (11 and 29 bit identifiers).
• Configures upto 128 transactions containing a total of 256 CAN frames
• Monitor/Modify function of process I/O data informing of CAN transaction status
• Diagnostic transaction Live List in the network I/O informing of CAN transaction status
• Handy Save/Load function allows for a completed configuration to be re-used for many other installations
• Password protection prevents unauthorized upload and download of configurations

PROFINET interface features

• Complete PROFINET-IO Soft-Real-Time (RT) communication
• Max 512 bytes of Input and 512 bytes of Output data
• Up to 64 slots / 1 sub slot
• Cyclic data exchange (10 ms cycle time)
• Acyclic Data exchange (Record Data Requests)
• Baud rate 10/100 Mbit/s
• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
• PROFINET uplink configuration via .GSDML file

Part number(s)

AB7317

Anybus Communicator CAN - PROFINET, 1x CAN, 1x PROFINET
