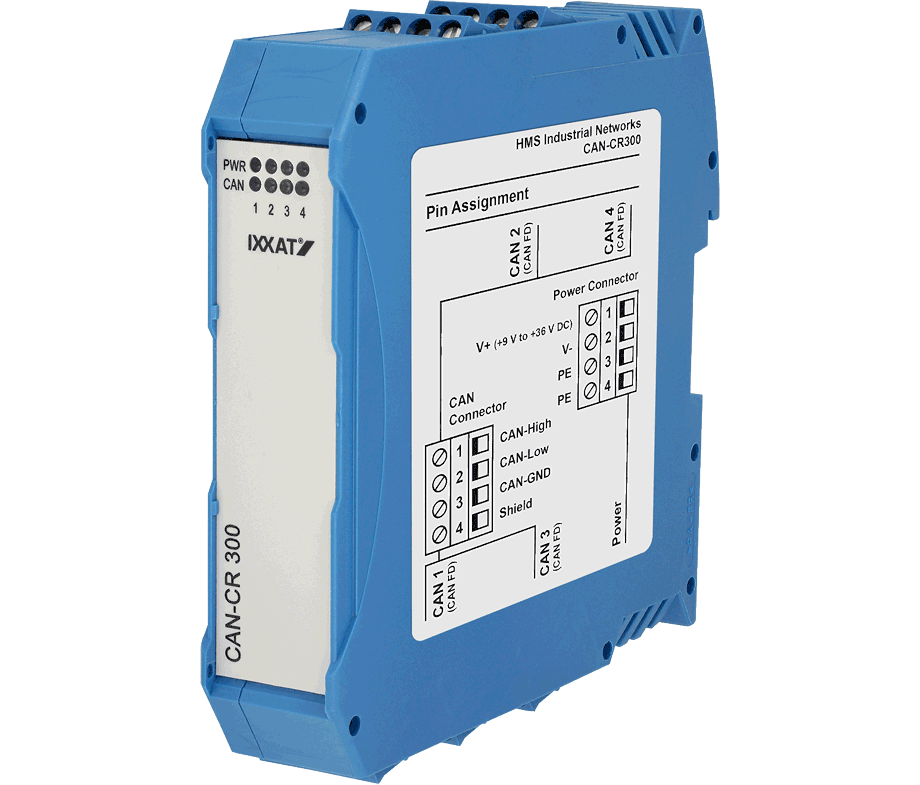

CAN-CR300, 4x CAN / CAN FD Repeater
CAN / CAN FD repeater with screw terminals and 4 channels
The CAN-CR300 is used for galvanic isolation of four segments of a CAN / CAN FD network. As a special feature, the repeater separates a defective segment from the rest of the network, allowing the remaining network to continue working. After the fault has been eliminated, the segment is automatically switched back to the network.
The galvanic isolation is provided for the CAN / CAN FD segments as well as for the power supply.
The galvanic isolation is provided for the CAN / CAN FD segments as well as for the power supply.
Features and Benefits
- CAN and CAN FD interfaces in one device
- 4x CAN / CAN FD
- Cost savings due to simple wiring
- Increased system reliability
- Almost no influence on real-time behavior
| Technical data | |
| Display | Transmit and defective segment (four duo LEDs, one for each segment), Power (one LED) |
| CAN bus interface | ISO 11898-2 with CAN choke. Two screw terminals. Available with and without integrated CAN termination. |
| CAN baudrate | Up to 888 kbit/s |
| CAN FD bus interface | ISO CAN FD and nonISO CAN FD |
| CAN FD baudrate | 500 kbit/s (arbitration bitrate) and up to 2 Mbit/s (flexible data rate) |
| Delay | typ. 175 ns (corresponds to ~35 m bus length) |
| Power supply | 9-36 V DC, typ. 70 mA, max. 100 mA, through terminals |
| Galvanic isolation | 1 kV DC / 1 sec, 500 V AC / 1 min; CAN 1, CAN 2 and power supply are galvanically isolated from each other. |
| Certification | CE, FCC |
| Temperature range | -20 ºC ... +70 ºC |
| Housing, size | Plastic enclosure, 22.5 x 105 x 114 mm |
| Contents of delivery |
| - CAN-CR300 |
| - User Manual |
Part number(s)
1.01.0210.40000
CAN-CR300, 4x CAN / CAN FD, all with Galvanic Isolation
with bus termination resistor
with bus termination resistor
1.01.0210.40200
CAN-CR300, 4x CAN / CAN FD, all with Galvanic Isolation
without bus termination resistor
without bus termination resistor
