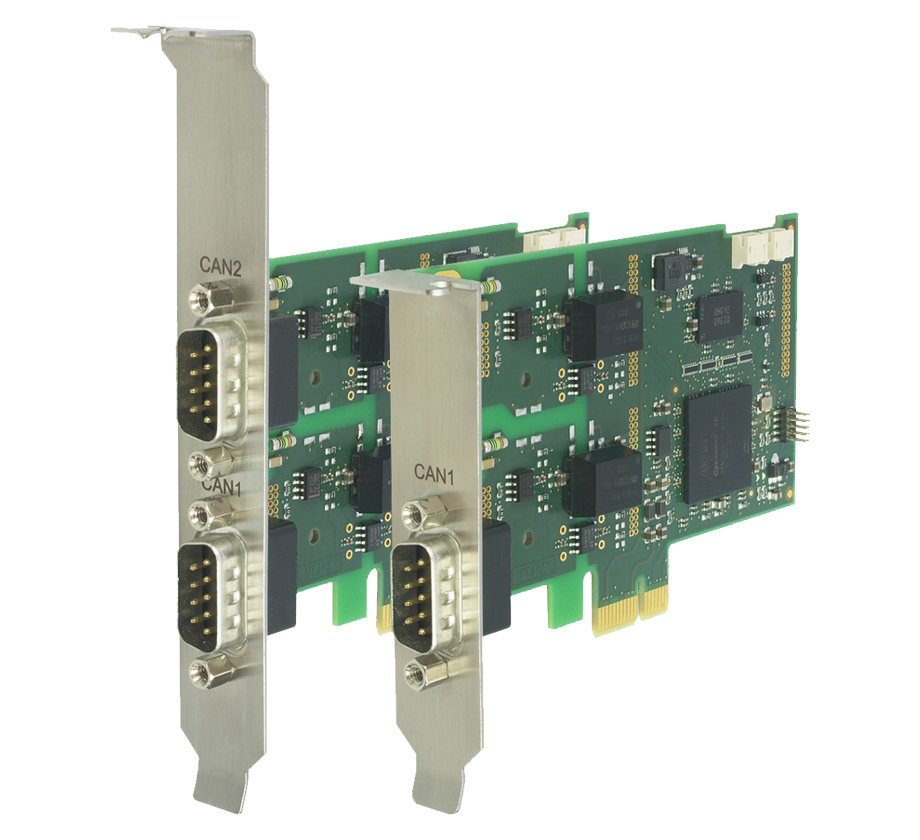

CAN-IB100/PCIe
Passive PCIexpress-board for CAN-bus (high / low speed)
The card contains one or two CAN channels but can be extended modular with a combination of CAN bus (high and / or low speed) interfaces up to 4 channels. Thus the CAN-IB100/PCIe can be deployed optimally for each desired application.
Features and benefits
- Cost effective passive board without a microcontroller
- Easy expandable via field bus expansion and expansion board
- Up to four CAN channels (High-/Low-Speed optional switchable)
- Available as standard and low-profile version
- Galvanic isolation optional
- Common driver interface for easy exchange of the PC interface type
Driver
For the connection to the PC, Ixxat delivers the card with its proven Windows and ECI-driver for Linux, QNX, INtime and VxWorks. The driver supports all interfaces on the card and allows their usage both with customer specific programs or with the analysis and configuration tools from Ixxat. For Windows optional protocol API's are available to support CANopen or J1939.
The VCI driver also supports all other PC interfaces offered by Ixxat, which enables the user to easily switch the type of interface without any adaptation of the customer application.
| Technical data | |
| PC bus interface | PCI express (V1.1) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| CAN interface | 1, 2 or 4 CAN interfaces; CAN 2.0 A/B; Sub-D9 plug according to CiA 303-1 |
| Optional: CAN Low-Speed (switchable via software) | |
| Optional: Galvanic isolation (1 kV, 1 sec.) | |
| Power supply | 3.3 V DC, 350 mA typ. |
| Temperature range | 0 ºC ... +70 ºC |
| Certification | CE, FCC |
| Size | Approx. 65 x 105 mm (available as standard and low-profile version) |
| Contents of delivery |
| - CAN-IB100/PCIe Interface |
| - Driver VCI for Windows™ 2000, XP, Vista, Win 7, Win 8 and Win 10 (all 32/64-bit) |
| - Driver ECI for Linux, VxWorks and other OS |
| - Basic CAN-monitor "miniMon" (Windows™) |
| - User Manual |
| Configuration options | ||||||
| CAN HS Interfaces |
Galvanic Isolation |
Low Profile |
MultiCAN | Field Bus | Expansion Board |
|
| 1.01.0231.11000 | 1 | |||||
| 1.01.0231.12001 | 1 | 1 | ||||
| 1.01.0231.21000 | 2 | |||||
| 1.01.0231.22001 | 2 | 2 | ||||
| 1.01.0232.11000 | 1 | |||||
| 1.01.0232.12001 | 1 | 1 | ||||
| 1.01.0232.21000 | 2 | |||||
| 1.01.0232.22001 | 2 | 2 | ||||
Part number(s)
Standard
Low profile
MultiCAN
Fieldbus Expansions
Expansion Boards
Combination options
We would like to advise in finding the right combination of interface board and extensions possible to configure an optimal solution. Please request, without any obligation, about the possibilities.
