Embedded Modbus TCP slave interface

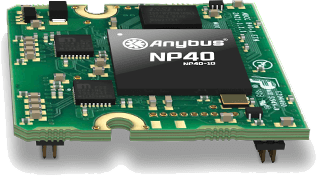

Anybus CompactCom B40 Modbus TCP brick for PCB-assembly
The Anybus CompactCom B40 for Modbus TCP is a complete embedded Industrial Ethernet communication plug-in modul which enables your products to communicate on an Modbus TCP network. The module acts as a Modbus TCP slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Add your own connectors and peripherals
The B40 Brick is a brick for PCB-assembly and gives you the flexibility to add your own connectors and network isolation. An alternative is to use the ready-made connector boards from HMS. The B40 Brick is ideal for embedded device manufacturers who are looking for a semi-integrated solution where connector flexibility, size and cost are key elements.
Interchangeable with other networks
By implementing the CompactCom B40 into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus brick .
Get real-time Modbus TCP communication
The Anybus CompactCom B40 enables fast communication between your device and the Modbus TCP network. The module supports generic device profiles and comes with a dual port switch implemented in the network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A ready-made embedded Modbus TCP slave interface for PCB assembly
- Easy mounting to your host PCB design
- Pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 1536 bytes of I/O data in each direction
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- IIoT ready: (EoE) Includes Email Client, Web server with customizable content, SSI functionality and FTP server
- Extended flash-based file system with two-disc access (internal and external)
- Transparent Socket Interface handling the complete Ethernet frame (support for 20 socket connections)
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
Modbus TCP Slave Interface
- Supports Modbus-TCP server/slave (up to 4 simultaneous connections)
- Pre-conformance supporting Modbus TCP V3.0
- Dual port cut-through switch implemented in the Anybus NP40 processor
- Customizable Identity Information
- JSON functionality
- Supports Modbus function codes: 01, 02, 03, 04, 05, 06, 15, 16, 23, 43/14
- 2x RJ-45 Modbus TCP 100 Mbit/s ports available simultaneously
Transparent Ethernet
The optional transparent RMI-interface offers, beside Modbus TCP, complete freedom implementing IT functions in an application.- Get full control over IT functionality and IT protocols
- Freedom to create and integrate your own IIoT solutions
- Separates the Modbus TCP protocol data from the other Ethernet data
| Technical specifications | |
| Dimensions (L•W•H) | 36 x 36 x 8 mm |
| Operating temperature | -40 to +85 °C |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| Ethernet features | Transparent socket interface Support of HTTP forwarding via socket interface Integrated 2-port switch IT functions (FTP server, E-mail client, web server with JSON and SSI support) |
| Internal file system | Configurable up to 28 MB Two discs are available: One internal (28 MB capacity), and one reserved for accessing the application file system (capacity determined by application) |
| LED indicators | Available via host connector - Indicates Module Status and Network Status |
| Connectors | N/A - 2x RJ45 100 Mbit/s on optional connector board |
| Galvanic isolation | N/A - Available on optioneel connector board |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount via B40 pcb/pcb connector (1.27mm pitch) and M3 screws |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6673
Anybus CompactCom B40 Modbus TCP
Transparent Ethernet
AB6777
Anybus CompactCom B40 Modbus TCP
Transparent Ethernet
Transparent Ethernet
Options
AB6666
Anybus CompactCom Connector Board EtherNet
