Embedded EtherNet/IP slave interface

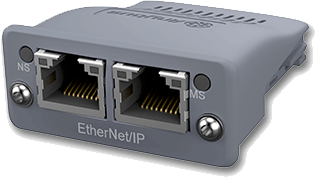

Anybus CompactCom M40 EtherNet/IP plug-in module
The Anybus CompactCom M40 for EtherNet-IP is a complete embedded Industrial Ethernet communication plug-in modul which enables your products to communicate on an EtherNet-IP network. The module acts as a EtherNet-IP slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Get real-time EtherNet-IP communication
The Anybus CompactCom M40 enables fast communication between your device and the EtherNet-IP network. The module supports generic device profiles and comes with a dual port switch implemented in the network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable embedded EtherNet-IP slave interface plug-in module with connectors
- ODVA pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 1448 bytes of process data in each direction, Up to 1500 bytes of explicit messaging
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- IIoT ready: (EoE) Includes Email Client, Web server with customizable content, SSI functionality and FTP server
- Extended flash-based file system with two-disc access (internal and external)
- Transparent Socket Interface handling the complete Ethernet frame (support for 20 socket connections)
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
EtherNet-IP Slave Interface
- EtherNet/IP CONFORMANCE TESTED™ by ODVA
- Support for Generic Device profile
- Dual port cut-through switch implemented in the Anybus NP40 processor
- Device Level Ring (DLR) Beacon-based
- Support QuickConnect Class B
- CIP energy object support
- CIP safety in preparation (hardware prepared)
- Customized identity information
- Explicit messaging up to 1500 using Large Forward Open
- Multiple I/O assembly support
- Modular device support
- 2x RJ-45 EtherNet/IP 100 Mbit/s ports available simultaneously
Connect to IoT-software with OPC UA or MQTT
Special CompactCom version that communicates with IoT protocols such as OPC UA and MQTT.- Tap data from the host device, all ADI data is readable (application parameters)
- Provide on-the-fly statistics from your device
- Predictive maintenance; Spot problems before they occur
- Collect data to perform data analysis (local server or on IT level)
Transparent Ethernet
The optional transparent RMI-interface offers, beside EtherNet-IP, complete freedom implementing IT functions in an application.- Get full control over IT functionality and IT protocols
- Freedom to create and integrate your own IIoT solutions
- Separates the EtherNet-IP protocol data from the other Ethernet data
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| Ethernet features | Transparent socket interface Support of HTTP forwarding via socket interface Integrated 2-port switch IT functions (FTP server, E-mail client, web server with JSON and SSI support) |
| Internal file system | Configurable up to 28 MB Two discs are available: One internal (28 MB capacity), and one reserved for accessing the application file system (capacity determined by application) |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 2x RJ45 100 Mbit/s |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6604
Anybus CompactCom M40 EtherNet/IP RJ45
AB6704
Anybus CompactCom M40 EtherNet/IP RJ45
without housing
without housing
AB6644
Anybus CompactCom M40 EtherNet/IP M12
AB6744
Anybus CompactCom M40 EtherNet/IP M12
without housing
without housing
OPC UA / MQTT
AB6651
Anybus CompactCom M40 EtherNet/IP
OPC UA / MQTT
OPC UA / MQTT
AB6751
Anybus CompactCom M40 EtherNet/IP
OPC UA / MQTT without housing
OPC UA / MQTT without housing
Transparent Ethernet
AB6638
Anybus CompactCom M40 EtherNet/IP RJ45
Transparent Ethernet
Transparent Ethernet
AB6738
Anybus CompactCom M40 EtherNet/IP RJ45
Transparent Ethernet without housing
Transparent Ethernet without housing
Options
SP1137
CompactCom Host Connector
