Embedded CC-Link slave interface

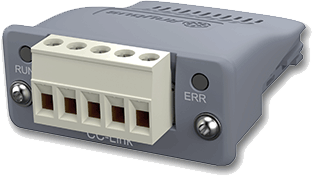

Anybus CompactCom M40 CC-Link plug-in module
The Anybus CompactCom M40 for CC-Link is a complete embedded plug-in communication module which enables your products to communicate on an CC-Link network. The module acts as a CC-Link slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Proven and trusted
The M40 CC-Link module handles data lengths up to 896 bit points and 128 word points of 16 bit data and supports both CC-Link v1.10 and v2.00. The CC-Link network implementation is made directly into the CompactCom network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable CC-Link plug-in module with connectors
- CLPA pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 896 bit points and 128 word points of 16 bit data via CC-Link 2.0
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
CC-Link Slave Interface
- CC-Link Remote Device
- I/O: up to 128 bit points and 16 word points of 16 bit data (CC-Link v.1.10, default)
- I/O: up to 896 bit points and 128 word points of 16 bit data (CC-Link v.2.00)
- Automatic CC-Link System Area handshaking (optional)
- Possibility to customize Vendor Code, Model Code and Version via application interface
- Baud Rate and Station Number configuration via application interface
- Configuration file (CSP+) provided
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 1x 5.08 (screw) |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6602
Anybus CompactCom M40 CC-Link 5P(screw)
AB6702
Anybus CompactCom M40 CC-Link 5P(screw) without housing
Options
SP1137
CompactCom Host Connector
