Embedded PROFIBUS slave interface

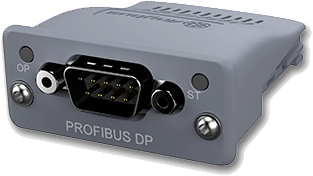

Anybus CompactCom M40 PROFIBUS plug-in module
The Anybus CompactCom M40 for PROFIBUS is a complete embedded plug-in communication module which enables your products to communicate on an PROFIBUS network. The module acts as a PROFIBUS slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Proven and trusted
The M40 PROFIBUS module handles data lengths up to 488 bytes (244 bytes input and 244 output) and supports both PROFIBUS DP-V0 and DP-V1 according to IEC61158 type 3. The PROFIBUS network implementation is made directly into the CompactCom network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable PROFIBUS plug-in module with connectors
- PNO pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 244 bytes of process data in each direction
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
PROFIBUS Slave Interface
- Supports PROFIBUS DPV1 functionality
- Automatic baud rate detection
- Generic and PROFIBUS specific diagnostic support
- User Parameterization Data support
- Set Slave Address support
- ADI access via DP-V1 read/write services
- Max 244 bytes Input and 244 bytes Output data
- Device identity customization
- Generic GSD file provided
- Support for Modular Device Mode
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 1x 9-pin Sub-D9 female |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6600
Anybus CompactCom M40 PROFIBUS D-Sub9 (bus)
AB6700
Anybus CompactCom M40 PROFIBUS D-Sub9 (bus) without housing
AB6640
Anybus CompactCom M40 PROFIBUS M12
AB6740
Anybus CompactCom M40 PROFIBUS M12 without housing
Options
SP1137
CompactCom Host Connector
