Embedded DeviceNet slave interface

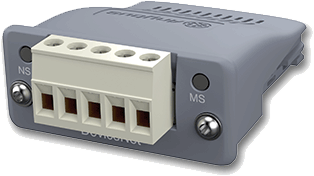

Anybus CompactCom M40 DeviceNet plug-in module
The Anybus CompactCom M40 for DeviceNet is a complete embedded plug-in communication module which enables your products to communicate on an DeviceNet network. The module acts as a DeviceNet slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Proven and trusted
The M40 DeviceNet module handles data lengths up to 512 bytes in both directions and supports both modular device profiles and energy profiles on DeviceNet. The DeviceNet network implementation is made directly into the CompactCom network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable DeviceNet plug-in module with connectors
- ODVA pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 512 bytes of process data in each direction
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
DeviceNet Slave Interface
- DeviceNet CONFORMANCE TESTED™ by ODVA
- Max 512 bytes of Input and 512 bytes of Output data
- Support QuickConnect Class B
- CIP Parameter Object Support: Explicit messaging, UCMM Capable, Bit-strobed I/O, Change-of-state / Cyclic I/O, Polled I/O
- Expansion possibilities via CIP forwarding
- Customizable Identity object
- Automatic Baud Rate Detection
- Modular Device functionality
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 1x 5.08 (screw) |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6601
Anybus CompactCom M40 DeviceNet 5P(screw)
AB6701
Anybus CompactCom M40 DeviceNet 5P(screw) without housing
AB6641
Anybus CompactCom M40 DeviceNet M12
AB6741
Anybus CompactCom M40 DeviceNet M12 without housing
Options
SP1137
CompactCom Host Connector
