Embedded CC-Link IE Field slave interface

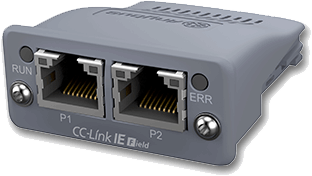

Anybus CompactCom M40 CC-Link IE Field plug-in module
The Anybus CompactCom M40 for CC-Link IE Field is a complete embedded Industrial Ethernet communication plug-in modul which enables your products to communicate on an CC-Link IE Field network. The module acts as a CC-Link IE Field slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Get real-time CC-Link IE Field communication
The Anybus CompactCom M40 enables fast communication between your device and the CC-Link IE Field network. The module supports generic device profiles and comes with a dual port switch implemented in the network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable embedded CC-Link IE Field slave interface plug-in module with connectors
- CLPA pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 1536 bytes of process data in each direction
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
CC-Link IE Field Slave Interface
- CC-Link IE Field Network intelligent device station
- Dual port cut-through switch implemented in the Anybus NP40 processor
- Configuration file (CSP+) provided by HMS
- Possibility to customize Vendor Code, Model Code and Version via application interface
- Fixed 1 Gbit/s Baud Rate
- Network Number and Station Number configuration via application interface
- Transient server functionality supported
- 2x RJ-45 CC-Link 1 Gbit/s ports available simultaneously
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| Ethernet features | Transparent socket interface Support of HTTP forwarding via socket interface Integrated 2-port switch IT functions (FTP server, E-mail client, web server with JSON and SSI support) |
| Internal file system | Configurable up to 28 MB Two discs are available: One internal (28 MB capacity), and one reserved for accessing the application file system (capacity determined by application) |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 2x RJ45 100 Mbit/s |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6609
Anybus CompactCom M40 CC-Link IE Field RJ45
AB6709
Anybus CompactCom M40 CC-Link IE Field RJ45
without housing
without housing
Options
SP1137
CompactCom Host Connector
