Embedded Powerlink slave interface

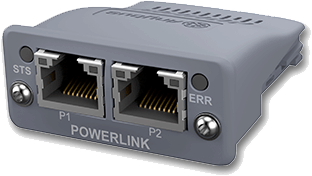

Anybus CompactCom M40 Powerlink plug-in module
The Anybus CompactCom M40 for Powerlink is a complete embedded Industrial Ethernet communication plug-in modul which enables your products to communicate on an Powerlink network. The module acts as a Powerlink slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Get real-time Powerlink communication
The Anybus CompactCom M40 enables fast communication between your device and the Powerlink network. The module comes with an integrated Ethernet hub implemented in the module's NP40 chip and supports multiplexing and PollResponse Chaining. It has a response time of 1μs (time from PollRequest to PollResponse) and a synchronization jitter of max. 1μs.
Features and benefits
- A complete, interchangeable embedded Powerlink slave interface plug-in module with connectors
- Pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 1490 bytes of process data in each direction
- Very low latency
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- IIoT ready: (EoE) Includes Email Client, Web server with customizable content, SSI functionality and FTP server
- Extended flash-based file system with two-disc access (internal and external)
- Transparent Socket Interface handling the complete Ethernet frame (support for 20 socket connections)
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
Powerlink Slave Interface
- Supports Ethernet POWERLINK V2.0 Draft Standard Proposal version 1.1.7
- Pre-conformance tested
- Dual port cut-through switch implemented in the Anybus NP40 processor
- Integrated hub
- Supports ring redundancy
- Customizable Identity Information
- Supports 1 TPDO and 1 RPDO (Each can hold 1490 bytes)
- Up to 57343 ADIs
- Adaptable XDD file included
- Supports segmented SDO transfer
- PollResponseChaining
- Multiplexing
- Support for sync functionality
- 2x RJ-45 Powerlink 100 Mbit/s ports available simultaneously
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| Ethernet features | Transparent socket interface Support of HTTP forwarding via socket interface Integrated 2-port switch IT functions (FTP server, E-mail client, web server with JSON and SSI support) |
| Internal file system | Configurable up to 28 MB Two discs are available: One internal (28 MB capacity), and one reserved for accessing the application file system (capacity determined by application) |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 2x RJ45 100 Mbit/s |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6611
Anybus CompactCom M40 Powerlink RJ45
AB6711
Anybus CompactCom M40 Powerlink RJ45
without housing
without housing
Options
SP1137
CompactCom Host Connector
